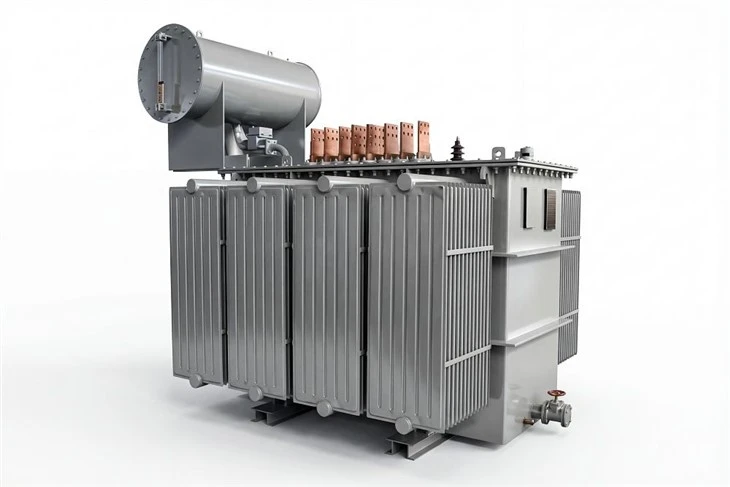

Rectifier Transformer

Description

Overview

The rectifier transformer produced by the company is a power transformer for rectifier equipment Its task is to convert the AC to a voltage of a certain size and number of phases, and then to rectify it through a rectifier element to meet the DC output requirements. In addition, the rectifier transformer has the following functions: isolate the rectifier equipment from the circuit of the power grid, ensure the safety of equipment and personnel, limit the short-circuit current, and reduce the electromagnetic interference between the rectifier equipment on the power grid or other parallel operation rectifier equipment, and suppress The rate of current rise in silicon-controlled rectifiers, etc.

For silicon carbide (black silicon, green silicon) refining, electrochemical (electrolytic), frequency conversion, traction, DC transmission, electroplating, spraying, electrical processing, charging, excitation, transmission and electrostatic dust and general industrial rectifier power supply and other industries.

●Capacity:10kVA~2500kVA

●Insulation class: Class F or Class H

●Frequency: 50/60Hz (30Hz-50KHz can be designed according to customer requirements)

●Number of phases: three phases

Executive standard

The power supply voltage connected to the polyphase transformer should be approximately symmetric
