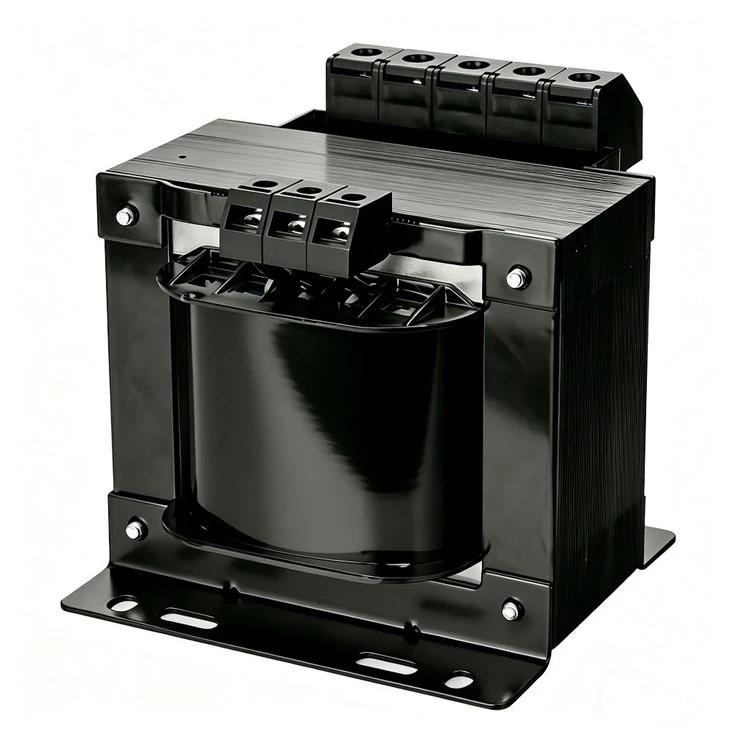

Single-Phase Isolation Transformer

Description

Overview

A Single Phase Isolation Transformer is designed to provide electrical isolation between its primary and secondary windings. It is commonly used in applications where it is important to separate circuits or ensure safety by isolating electrical systems.

Features

1. Electrical Isolation: Provides complete separation between the input (primary) and output (secondary) circuits, ensuring that electrical surges, noise, or faults in one circuit do not affect the other.

2. Safety: Reduces the risk of electric shock by isolating the electrical system. Ideal for sensitive equipment or when grounding is a concern.

3. Noise Reduction: Helps in reducing electrical noise and interference from external sources, improving the performance of sensitive devices like medical equipment, audio systems, or industrial controls.

4. Compact Design: Smaller and simpler than three-phase transformers, making it ideal for residential or small industrial applications.

5. Common Applications:

• Laboratories: For experiments and sensitive equipment where isolation is crucial.
• Medical Equipment: To ensure patient safety from electrical faults.
• Home Appliances: Providing electrical separation in sensitive devices.
• Industrial Controls: For protecting low-voltage systems from high-voltage issues.

6. Versatility: Available in various voltage ratings and sizes to meet different industrial, residential, and commercial needs.

Specifications

• Voltage: Primary and secondary voltages can be customized (e.g., 110V to 220V, 120V to 240V).
• Capacity: Usually ranges from 1kVA to several kVA.
• Insulation: Oil-immersed or dry-type options available depending on the application and environmental needs.
