50 kVA Single Phase Pole Mounted Transformer

Description

The 50 kVA single phase pole mounted transformer supplies single-phase loads from an overhead medium-voltage network. The published primary options are 10, 12 and 15 kV, with 240/120 V secondary or the stated 220 V alternative, for rural and suburban distribution.

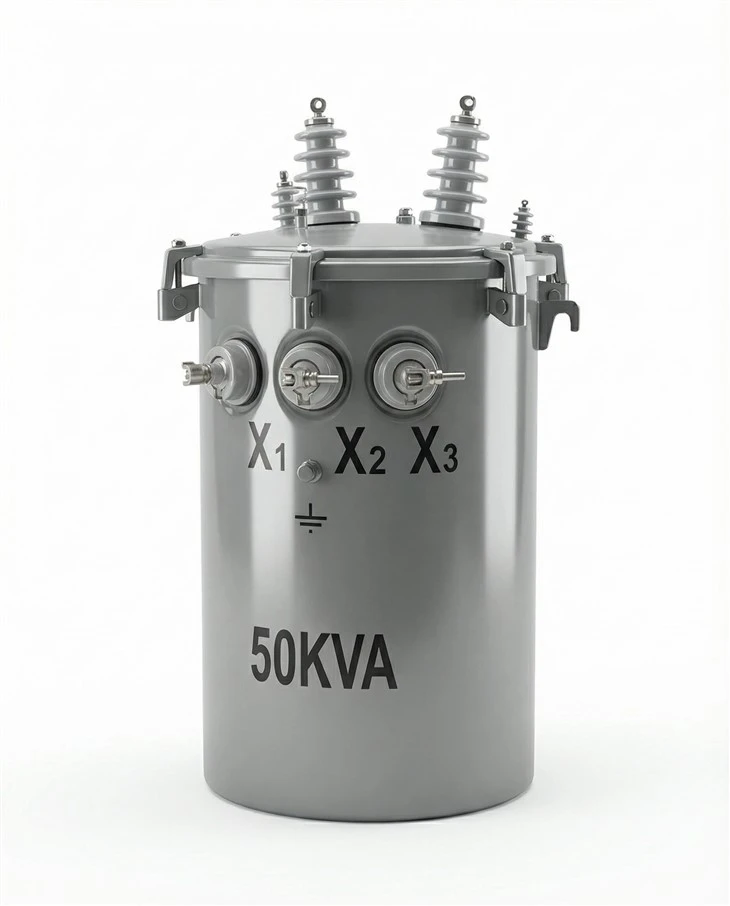

50 kVA Single Phase Pole Mounted Transformer — Key Features

• 50 kVA single-phase rating.
• Cylindrical, fully sealed oil tank.
• Mounting lugs for attachment to a utility pole.
• High-voltage bushings above the tank and low-voltage terminals at the side.
• Oil-immersed natural cooling (ONAN).

Technical Parameters

Standards

Technical specification reference: IEC 60076-1:2011 (general requirements for power transformers). The applicable requirements and test programme are to be agreed in the project specification.

Applications

• Rural single-phase feeders.
• Suburban residential distribution.
• Small commercial single-phase loads.
